Residual Prediction Tests for Well-Specification of Instrumental Variable Models

Two tests for the well-specification of the linear instrumental variable model. The first test is based on trying to predict the residuals of a two-stage least-squares regression using a random forest. The second test is robust to weak-identification and based on trying to predict the residuals for a particular candidate parameter and can also be used to construct confidence sets with an Anderson-Rubin-type inversion. Details can be found in Scheidegger, Londschien and Bühlmann (2025) "Machine-learning-powered specification testing in linear instrumental variable models" .

RPIV

The RPIV package implements residual prediction tests for the well-specification of linear instrumental variable (IV) models, as developed in Scheidegger, Londschien and Bühlmann (2025).

For a response $Y_i \in \mathbb R$, endogenous regressors $X_i \in \mathbb R^p$, instruments $Z_i \in \mathbb R^d$ with $d \ge p$, and optional exogenous control variables $C_i \in \mathbb R^q$, the package provides two related procedures:

1. RPIV_test(): a residual prediction test for the well-specification of the linear IV model under strong identification;
2. weak_RPIV_test(): a weak-IV-robust version that tests the conditional moment restriction at a given candidate parameter value and can be inverted to obtain confidence sets.

The main question addressed by the package is whether the linear IV model is an appropriate description of the data.

More formally, the standard test targets the null hypothesis $H_0:\ \exists \beta \in \mathbb R^p \text{ such that } \mathbb E[Y_i - X_i^T\beta \mid Z_i] = 0 \quad \text{a.s.}$ which is implied by the well-specification of the linear IV model (with mean-independence assumption on the errors).

When exogenous controls are present, the model is understood as allowing for an additional linear term in $C_i$, and in the standard implementation these controls are added both to $X$ and to $Z$.

The weak-IV-robust procedure instead considers, for a fixed candidate value $\beta_0 \in \mathbb R^p$, the null hypothesis $H_0(\beta_0):\ \exists \theta \in \mathbb R^q \text{ such that } \mathbb E[Y_i - X_i^T\beta_0 - C_i^T\theta \mid Z_i, C_i] = 0 \quad \text{a.s.}$ By fixing $\beta_0$, the test avoids relying on strong identification. Inverting the test over a grid of candidate values yields a confidence set for the endogenous coefficient(s). If this confidence set is empty, the data provide evidence against well-specification.

The underlying idea of both tests is to check for signal in the residuals using a random forest. For a detailed discussion of the methodology, we refer to Scheidegger, Londschien and Bühlmann (2025). A Python implementation of the residual prediction approach is available in the package ivmodels.

Installation

You can install the released CRAN version of RPIV with

install.packages("RPIV")

You can install the development version from GitHub with

devtools::install_github("cyrillsch/RPIV")

Example: Standard RPIV Test

The following example illustrates how to test the well-specification of a linear IV model with RPIV_test(). We simulate three outcomes: one generated from a well-specified linear IV model, and two generated under misspecification.

set.seed(1)
n <- 200
C <- rnorm(n)
Z <- cbind(rnorm(n), C + rnorm(n))
H <- rnorm(n)
X <- Z[, 1] - Z[, 2] + rnorm(n)

Y1 <- X - C + H + rnorm(n)
Y2 <- X - C + H + Z[, 1]^2 + rnorm(n)
Y3 <- 2 * sign(X - C) + H + rnorm(n)

We apply RPIV_test() to all three outcomes. By default, the function uses a heteroskedasticity-robust variance estimator.

library(RPIV)

result1 <- RPIV_test(Y = Y1, X = X, C = C, Z = Z)
result2 <- RPIV_test(Y = Y2, X = X, C = C, Z = Z)
result3 <- RPIV_test(Y = Y3, X = X, C = C, Z = Z)

result1$p_value
#> [1] 0.1575286
result2$p_value
#> [1] 0.0004228503
result3$p_value
#> [1] 0.005525054

As expected, the null of well-specification is not rejected for Y1, while it is rejected for Y2 and Y3 at significance level $\alpha = 0.05$.

Example: Weak-IV-Robust RPIV Test

The function weak_RPIV_test() provides a weak-IV-robust version of the procedure. Rather than testing whether there exists some coefficient vector satisfying the conditional moment restriction, it tests the null hypothesis at a fixed candidate value beta.

A key use case is test inversion: we evaluate the test over a grid of candidate values and retain those values that are not rejected, i.e., the values that are compatible with well-specification at a given significance level. Under well-specification, the resulting set is a confidence set for the endogenous coefficient. If this set is empty, the data provide evidence against well-specification of the linear IV model.

In the next example, we consider two outcomes:

• Y1, generated from a correctly specified linear IV model with true coefficient beta = 1;
• Y2, generated under misspecification through an additional nonlinear term in the instrument.

set.seed(1)
n <- 200
Z <- rnorm(n)
C <- rnorm(n)
H <- rnorm(n)
X <- Z + rnorm(n) + H

Y1 <- X - C - H + rnorm(n)       # correctly specified, true beta = 1
Y2 <- X - C - H + Z^2 + rnorm(n) # misspecified conditional moment restriction

We now construct the weak-IV-robust test for both outcomes.

library(RPIV)

test_statistic1 <- weak_RPIV_test(Y = Y1, X = X, C = C, Z = Z)
test_statistic2 <- weak_RPIV_test(Y = Y2, X = X, C = C, Z = Z)

Next, we evaluate the test over a grid of candidate values. Since the test statistic is asymptotically standard Gaussian under the null, we obtain one-sided p-values as 1 - pnorm(statistic). The confidence set at level 1 - alpha is then the set of candidate values whose p-values are at least alpha.

beta_grid <- seq(-1, 3, by = 0.05)
alpha <- 0.05

stats1 <- sapply(beta_grid, function(b) test_statistic1(b, "fit"))
pvals1 <- 1 - pnorm(stats1)
confset1 <- beta_grid[pvals1 >= alpha]

stats2 <- sapply(beta_grid, function(b) test_statistic2(b, "fit"))
pvals2 <- 1 - pnorm(stats2)
confset2 <- beta_grid[pvals2 >= alpha]

The confidence sets obtained by inversion are:

confset1
#>  [1] 0.45 0.50 0.55 0.60 0.65 0.70 0.75 0.80 0.85 0.90 0.95 1.00 1.05 1.10 1.15
#> [16] 1.20 1.25 1.30 1.35 1.40 1.45 1.50 1.55 1.60 1.65 1.70
confset2
#> numeric(0)

For the correctly specified outcome Y1, the confidence set contains values close to the true parameter beta = 1. For the misspecified outcome Y2, the confidence set is empty reflecting the fact that no candidate value satisfies the conditional moment restriction.

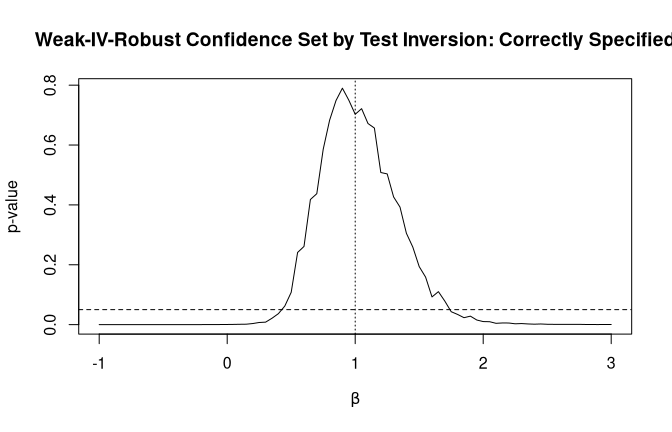

It is also useful to visualize the p-values over the grid. Values above the horizontal line at alpha = 0.05 belong to the confidence set.

plot(beta_grid, pvals1,
     type = "l",
     xlab = expression(beta),
     ylab = "p-value",
     main = "Weak-IV-Robust Confidence Set by Test Inversion: Correctly Specified")
abline(h = alpha, lty = 2)
abline(v = 1, lty = 3)

plot(beta_grid, pvals2,
     type = "l",
     xlab = expression(beta),
     ylab = "p-value",
     main = "Weak-IV-Robust Confidence Set by Test Inversion: Misspecified")
abline(h = alpha, lty = 2)
abline(v = 1, lty = 3)

In this example we used type = "fit", which reuses the tuning parameters obtained at the TSLS residuals and only refits the random forest for each candidate value. This is often a good compromise between statistical accuracy and computational cost when evaluating the test on a grid.

Other options for the argument type are "tune_and_fit", which retunes and refits the random forest for the current candidate value, and "recalculate", which reuses the partition obtained at the TSLS residuals and only recomputes leaf means.

Example: Cluster-Robust Inference

The package also supports cluster-robust inference. In the next example, we simulate clustered data with 50 clusters of size 4. The linear IV model is well-specified, but valid inference requires accounting for the clustering structure.

set.seed(1)
n <- 200
clustering <- rep(1:50, length.out = n)

Z <- rep(rnorm(1:50), length.out = n) + 0.1 * rnorm(n)
H <- rep(rnorm(1:50), length.out = n) + 0.1 * rnorm(n)
X <- Z + rep(rnorm(1:50), length.out = n) + 0.1 * rnorm(n)
Y <- X + H + rep(rnorm(1:50), length.out = n) + 0.1 * rnorm(n)

We apply the test with three different variance estimators: homoskedastic, heteroskedastic, and cluster-robust.

result <- RPIV_test(
  Y = Y,
  X = X,
  C = NULL,
  Z = Z,
  variance_estimator = c("homoskedastic", "heteroskedastic", "cluster"),
  clustering = clustering
)

result$homoskedastic$p_value
#> [1] 0.02844595
result$heteroskedastic$p_value
#> [1] 0.01728716
result$cluster$p_value
#> [1] 0.1347029

In this setting, only the cluster-robust variance estimator should typically avoid spurious rejection at significance level $\alpha = 0.05$.

More Examples

More examples can be found in Scheidegger, Londschien and Bühlmann (2025) and in the accompanying GitHub repository RPIV_Application.

References

Cyrill Scheidegger, Malte Londschien and Peter Bühlmann. Machine-learning-powered specification testing in linear instrumental variable models. Preprint, arXiv:2506.12771, 2025.
